Corack 42U Server Rack

The CORACK 42U server rack is a high-quality storage solution designed for optimum cooling, power distribution, cable management, and security. Built to accommodate today's powerful computing hardware, including blade servers, the CORACK provides an ideal server rack environment. The Corack enclosure is compatible with servers made by Dell, IBM, HP, and SUN, as well as other 19" rack mountable solutions.

CORACK 42U SERVER RACK FEATURES & BENEFITS:

• Provides high-end structural stability

• Heavy-duty rated castors for easy installation and transportation (static load rated to 1,000 kg)

• Innovative split door design feature

• Cabling pathway built within the rack for cable management

• Advanced cooling; fully perforated doors for ventilation

• Perforated top cover for further cooling capabilities

• Overall height of 80 inches / 2,020 mm, including castors and leveling feet

• Door swings open 150 degrees

• Located on mounting angles for easy equipment installation

• Optional identical keys, master keys are available for different levels of security

• Holds 2,640 lbs (load rating)

• Safety protection against electric shock and reduction of EMI emissions

• Side and middle split doors allow equipment installation or maintenance by reducing space required to open the doors


BASE UNITS CONSISTS OF

• Basic 19" EIA width frame

• Perforated front door

• Split rear door

• Perforated Top Cover

• Solid side panels

• Casters

• Leveling feet

• M6 screw pack

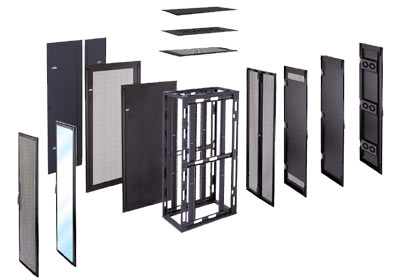

CORACK 42U Server Rack Anatomy

CORACK 42U SERVER RACK BASE UNIT
